HIGH PERFORMANCE 5G CONNECTION

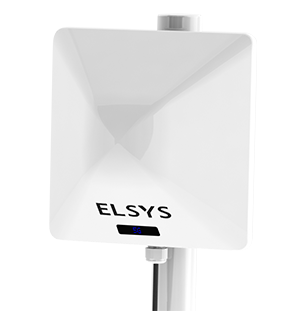

Amplimax Ultra 5G
5G Outdoor CPE Modem and Directional Antenna
- Frequency: 3G, 4G and 5G signal
- Coverage: 8x more coverage than regular modems
- External Conditions: Water, dust and UV ray protection
- Sim Card: 2 inputs for nano SIM card | 1 internal eSIM
- Certifications: Certified by FCC
-
Main application: Failover for critical systems, mobile network in urban areas, security and monitoring, broadcasts
-
Warranty: 2 Years
- *prices may vary for companies and large quantities
$ 649.00
LOW IMPLEMENTATION COST
HIGH-PERFORMANCE INTERNET FOR PRIMARY CONNECTION OR BACKUP LINK
SPEED AND EASY INSTALLATION
BLIND SEARCH FIND THE BEST SIGNAL FROM OPERATORS IN YOUR AREA AND GET THE BEST PLAN FOR YOUR NEEDS
DOWNLOAD UP TO 2.5 GBPS AND 1.6 GBPS ON 4G
TWO SIM CARDS
Q&A
How far from a cell tower can you be to still be able to use the Elsys Amplimax Ultra?
The short answer is, with clear line of sight, WELL over 10 miles is possible.
This is a difficult question to answer because cellular connections are not so simple as to say all towers operate the same, and cellular is not a single frequency aimed at your house.
Cell bands range from 600MHz to 6000MHz, not including mmWave signals. Every tower has a variety of bands that cover different frequencies and may not have a full range of them available or functioning all the time.
The different frequencies travel different distances. 600MHz travels MUCH further and penetrates structures MUCH better than 6000MHz. It scales pretty much in a linear fashion. The higher the frequency, the shorter the distance it can travel at usable power levels.
Further that, every cell tower around you may not have their cells/sectors antennas aimed at your house. That will make a huge difference in how much a signal will be to useful for you.
Elsys engineering has done field test at distances over 35km, with customer experiences reported at over 50km (21.75 miles to 31 miles). All in all, if you can get a signal at all, the outdoor antenna system of the Elsys Amplimax Ultra should be able to improve it for more usability.
How far from a cell tower can you be to still be able to use the Elsys Amplimax Ultra?
How does Amplimax’s Blind Search feature work?
Amplimax’s Blind Search function helps you identify which carrier provides the strongest signal and best available technology at your location before you purchase your SIM card
What bands does the Amplimax Ultra support?
4G Bands: 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 71
5G Bands: 2, 5, 7, 12, 13, 14, 25, 26, 29, 30, 38, 41, 48, 66, 70, 71, 77, 78
Does Amplimax accept SIM cards from all carriers?
Yes. Amplimax supports nano SIM cards from all carriers.
I live in a rural area with poor reception, will Amplimax improve my speed?
Yes. Amplimax is designed specifically for areas with poor reception. Use a SIM from the carrier with the closest tower for best results. With Amplimax, your internet will feel as if the tower is right in your backyard.
What is included in the Amplimax package?
Amplimax comes with everything you need for installation:
1 Amplimax Ultra
1 Power supply (24 VDC/1 A)
1 Power supply for router (12 VDC/1.5 A)
1 Ethernet cable (4.5 ft)
1 Ethernet cable (49.2 ft, PoE)
1 PoE injector
2 plastic clamps (for pole and cable)
2 metal clamps (for pole mounting)
1 wall bracket (optional use)
You will only need a Wi-Fi router, you can even use one you already have at home.
Is Amplimax compatible with T-Mobile, AT&T, or Verizon home internet plans?
Yes. Amplimax works with all U.S. carriers.
→ Verizon: requires a physical SIM card (eSIM not supported).
→ Other carriers: simply insert your SIM and follow the configuration guide.
Can Amplimax’s IMEI be changed?
Yes. Amplimax allows IMEI customization, which can be useful for certain carrier plans such as T-Mobile’s. This feature is optional and not required for regular operation.
What kind of warranty is included?
Amplimax includes a 1-year manufacturer warranty covering defects, along with technical support from our team.
Does Amplimax have a reset function for factory settings recovery?
Yes. Amplimax includes a reset function to restore factory settings if needed.
What is the voltage range of Amplimax’s power adapter?
The power adapter is bivolt, operating from 100 to 240 VAC (50/60 Hz).
How can I access the Amplimax configuration page?
Connect the device to your computer via Ethernet and type http://192.168.10.254 into your web browser.
Does Amplimax offer software updates to fix signal issues?
Yes. Amplimax provides software updates to address connection or signal problems and enhance performance. Updates can be downloaded from connectwithcolumbia.com and installed via USB flash drive.
Are software updates mandatory?
No. Updates are optional. Users may choose to update only when necessary or recommended.
The best solution for 5G connection
has a name: AMPLIMAX ULTRA
